TL-1000 1L Artificial Test Lung: Ventilator PM & OEM Guide
Before acceptance testing, routine checks, and clinical training, ventilator and anesthesia teams often need an artificial test lung to simulate patient respiratory mechanics. A 1L adult test lung is one of the most common setups: portable, practical, and suitable for many adult ventilator verification workflows.
TL-1000 is a 1L artificial test lung supplied by Jarwey for neutral OEM programs, with optional customization of connectors, resistance configuration, packaging, and labeling, plus design sampling and volume production support. It aligns with mainstream 1L test-lung performance and fitting standards while offering strong value and flexible delivery for hospital biomeds, OEM builders, and distributor programs.

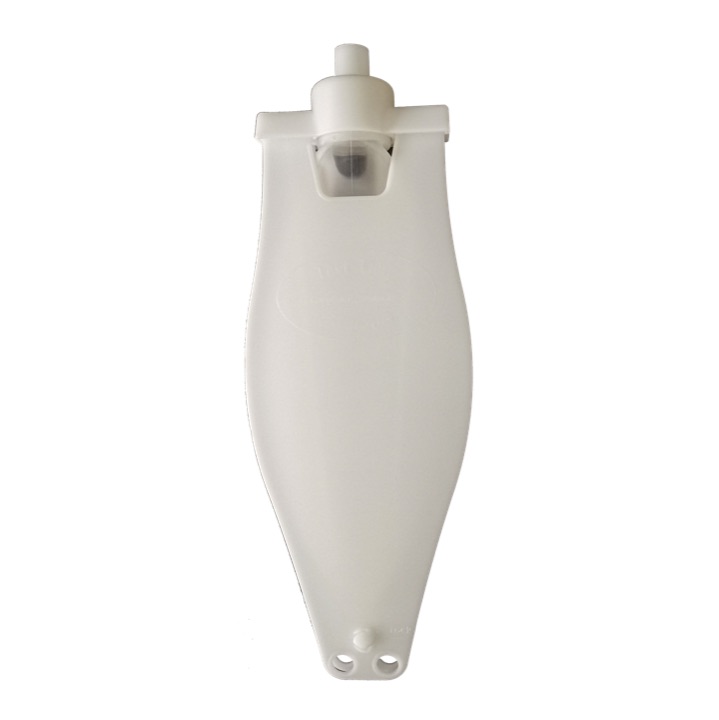

Figure: TL-1000 1L test lung (neutral OEM reference)
What does a test lung verify?
Mechanical ventilators must be checked for tidal volume delivery, pressure waveforms, trigger response, and alarms. A safe, repeatable setup typically uses:
- Compliance simulation (how “stiff” or “soft” the lung behaves)
- Airway resistance via optional R5 / R20 connectors
- Repeatable training and PM workflows for biomeds and clinical educators
1L adult bags are widely used in hospital biomeds, respiratory therapy labs, and OEM demo kits—similar in class to B&B 1.0L or IMT SmartLung Adult references.
TL-1000 key specs (selection reference)
| Item | TL-1000 typical |
|---|---|
| Bag volume | 1 L (1000 mL) |
| Applicable tidal volume | about 0–600 mL |
| Compliance | about 22±3 mL/cmH2O @ 500 mL (OEM adjustable) |
| Patient circuit fitting | 15 mm OD (ISO 5356-1 class) |
| Optional resistance | R5 and R20 (standard options) |
| Bag material | 1L silicone bag with biocompatibility |
| Plastic parts | DuPont Delrin POM |
| Environmental | RoHS compliant |
| Sterilization | 121°C autoclave |
| OEM | neutral branding, sampling and mass production |
Quality & materials (medical OEM checklist)
- RoHS: RoHS compliant
- Silicone bag: 1L ventilation bag with biocompatibility
- Plastic parts: DuPont Delrin high-viscosity acetal homopolymer (POM)
These material specs meet common medical OEM expectations. Without compromising quality, TL-1000 helps teams control BOM cost and shorten sampling-to-production cycles for PM fixtures, training kits, and neutral accessory programs.
How to compare with TL-1000(R20)-class parts?
Common 1L test-lung kits usually include:
- 1L silicone test bag
- Standard elbow / patient circuit adapter
- Optional R20 resistor for higher airway resistance simulation
If your workflow references an imported catalog part, compare volume → fittings → resistance kit → cleaning policy → OEM labeling before releasing a pilot BOM.
Typical use cases
- Ventilator / anesthesia machine acceptance and PM checks
- Biomedical engineering and clinical training
- Respiratory therapy and ICU education
- OEM demo cases, verification fixtures, and neutral accessory kits
Resources
TL-1000 product page & datasheet
Jarwey product center · passive parts & accessories
Summary
For ventilator verification, training, or OEM accessory programs, TL-1000 offers a cost-effective 1L artificial test lung path with neutral customization—mainstream specs and medical-grade materials without the premium import price tag. Confirm your test protocol and connector requirements, then run a sample evaluation before mass release.
Note: for test/training use only—not for direct patient connection. Specs per latest datasheet and inspection records.
